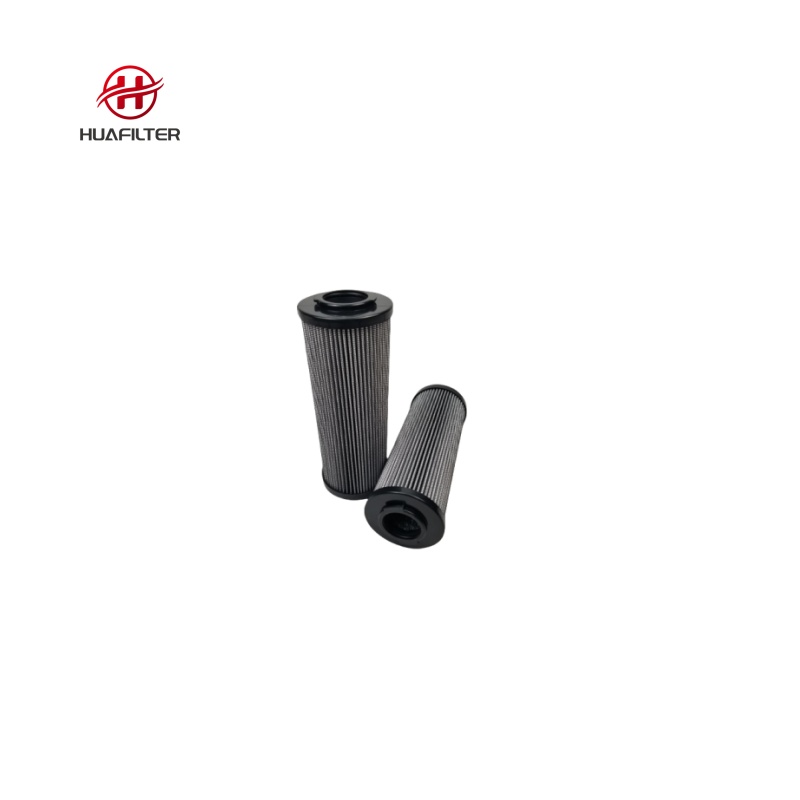

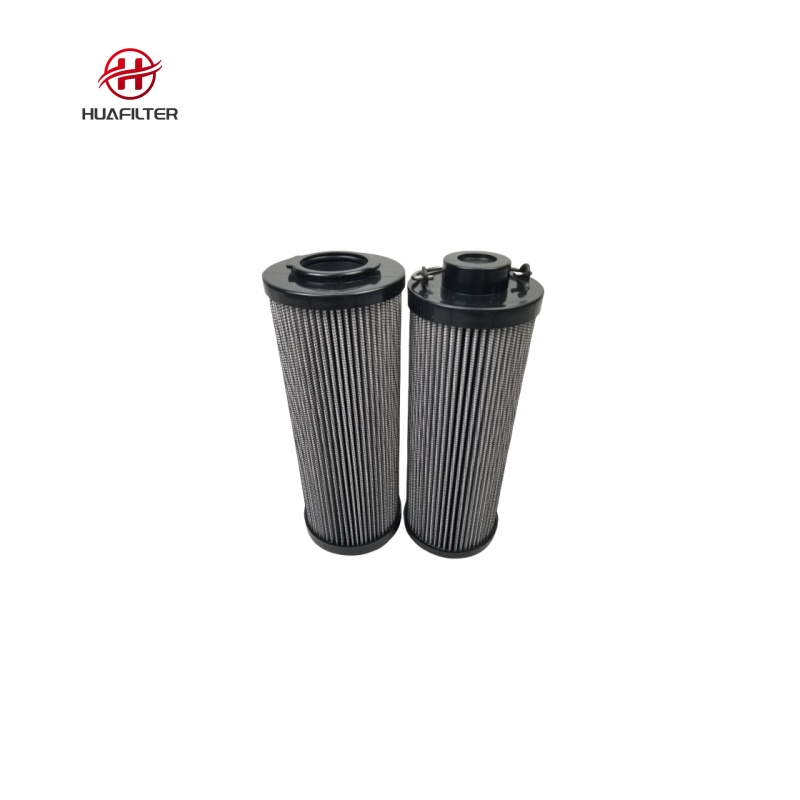

The parameters of this Replacement for Hydac 0240R010BN3HC are consistent with the original product. We can customize other special requirements according to customer needs. Customers only need to provide product models and specific requirements. We will customize production samples according to customer needs, and then mass production will be carried out after the samples are confirmed. We can customize the full range of pressure components, such as 1300R010BN3HC, 2600R050BN3HC and 0660R010ON-10μm. There are various models and specifications, which are easy and quick to install and replace, with small initial pressure difference and long cleaning cycle.
| Technical Data | |
| Efficiency 1 | 10μ@β200 |
| Efficiency 2 | 12μ@β1000 |
| Style | Return filter |
| Out Diameter | 73.5mm |
| Inner Diameter | 34.2mm |
| Length | 203.0mm |
| Media Type | Glass Fiber |
| Flow Direction | Out-in |
| Bypass Pressure | 3.0 bar |
| Collapse Pressure | 20 bar |
| Seal | Nitrile |
| Temperature Range | -30~+100℃ |
Features:
▶Made of single or multi-layer metal mesh and filter material
High concentricity
▶High pressure resistance
▶Good straightness
▶Stainless steel material
▶No burrs
▶Long service life
Application:
Replacement for Hydac 0240R010BN3HC filter elements are widely used in the distillation, absorption, evaporation, filtration and other processes in the coarse and fine filtration of lubricating oil and fuel.

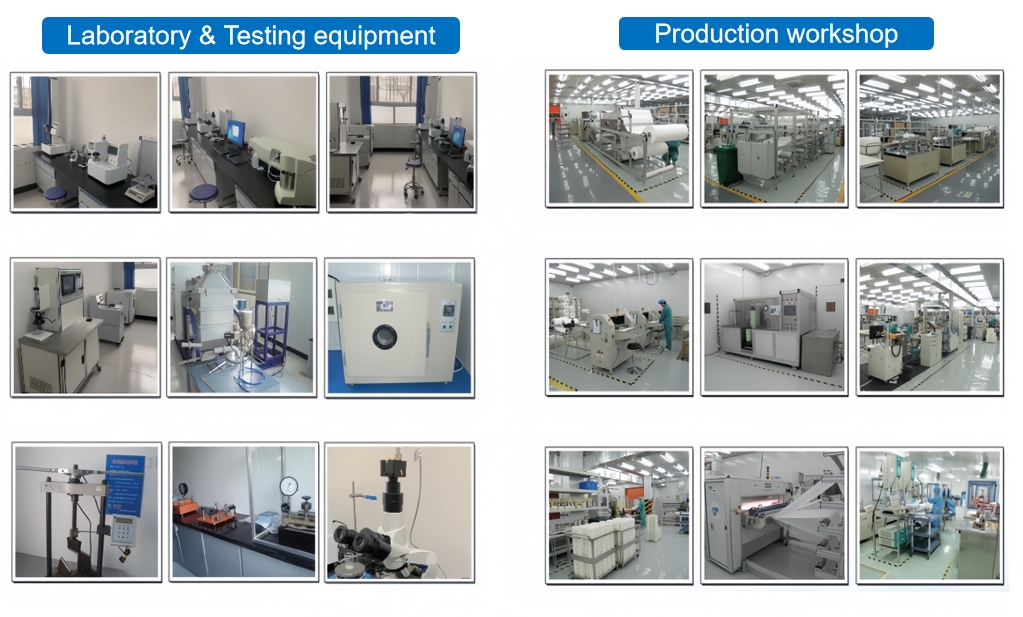

Our company has modern factories and production equipment, a scientific research team with high academic level, advanced laboratories and perfect testing methods to ensure product quality.
